SECURITY & CCTV

Durable ABS security CCTV boxes designed to provide a secure and protective enclosure for CCTV camera connections, wiring and related electrical components. Their robust construction helps protect connections from dust, moisture and everyday environmental exposure while providing a neat and professional installation.

Key Features:

Durable ABS construction
Strong and impact-resistant housing
Secure screw-on cover
Protects CCTV connections and wiring
Neat and professional installation
Suitable for indoor and outdoor applications
Easy access for installation and maintenance

Ideal for: CCTV camera installations, security systems, outdoor surveillance, commercial buildings, residential properties and general electrical applications.

EHJ4

EHJ10

EHJ11

EHJ11 - GT

EHJ17-FL

EHJ17-DL

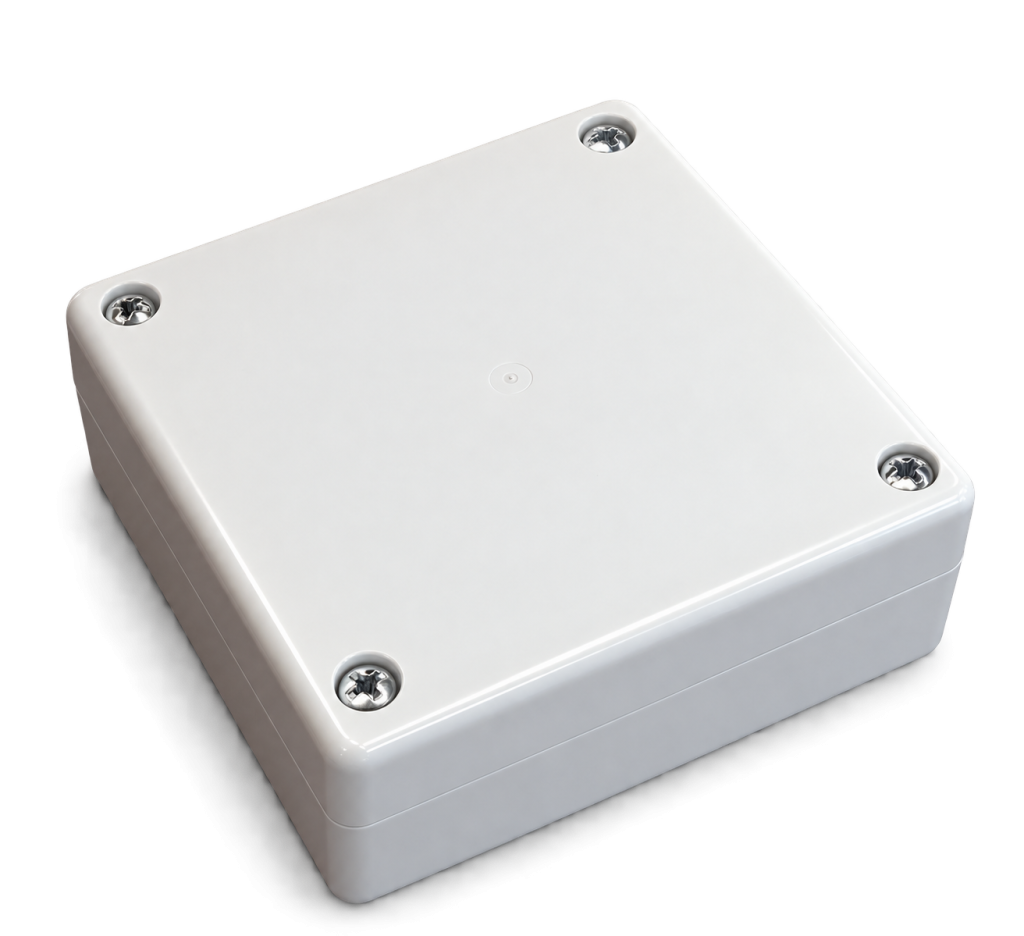

EH J4

Size: 120 x 114 x 42 mm

Facilitates up to 6 connections either direct or via 20mm glands
Fits on and links to 4 x 4 flush mounted boxes
New four screw design
Great for mounting CCTV
All necessary mounting screws/plugs supplied

EH J10

Size: 148 x 95 x 52 mm

Comes with flat lid
Great for mounting CCTV
All necessary mounting screws/plugs supplied

EH J11

Size: 115 x 115 x 61 mm

Comes with seal and IP 55 rating
Marks for gland positioning
Great for mounting CCTV
All necessary mounting screws/plugs supplied

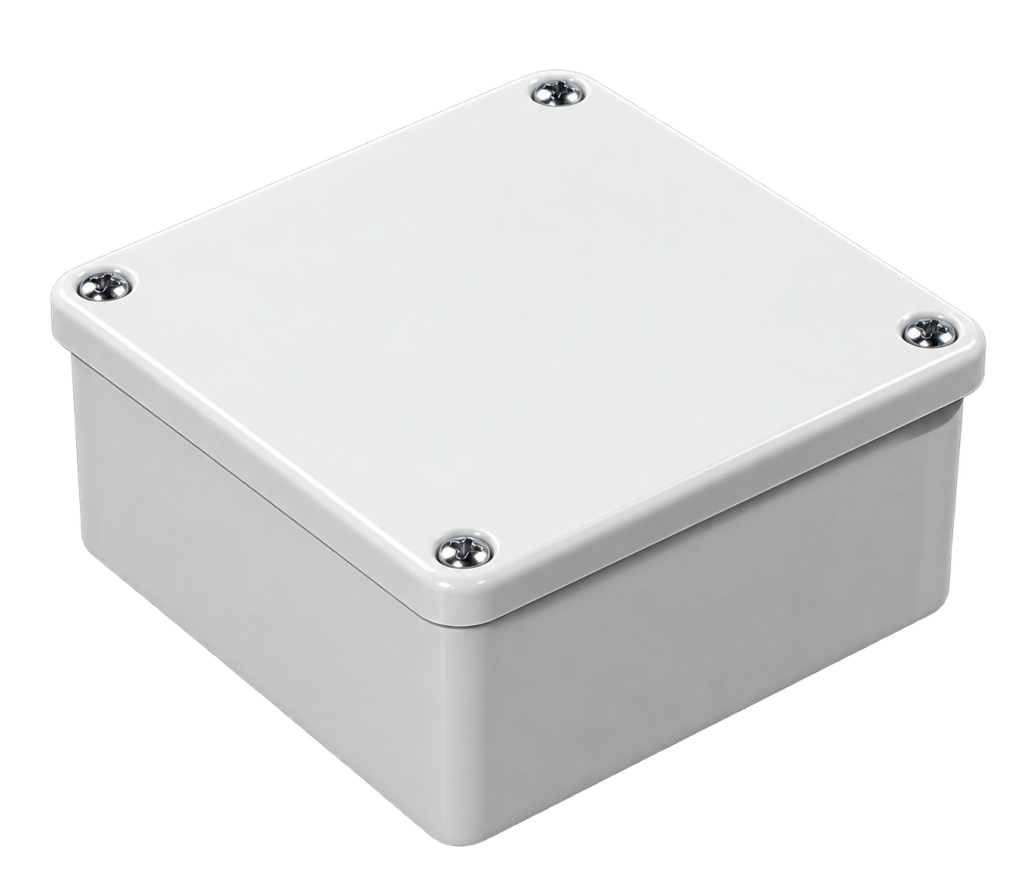

EH J17FL

Size: 120 x 120 x 58 mm

SABS tested to IP 66 Rating
Great for mounting CCTV cameras and housing circuit boards
All necessary mounting screws/plugs supplied

CCTV Jointing Enclosures

Code	Size / Packing	Description
EH J4	EXTERNAL - 120 X 114 X 42 MM \| 30 & 120 UNITS PER BOX	4 X 4 S/MNT
EH J10	EXTERNAL - 148 X 95 X 52 MM \| 22 UNITS PER BOX	SM BOX
EH J11	EXTERNAL - 105 X 105 X 60 MM \| 24 & 120 UNITS PER BOX	GP BOX & SEAL (IP55)
EH J11 - GT	EXTERNAL - 105 X 105 X 60 MM \| 36 UNITS PER BOX	GP BOX & SEAL & GROMMETS (IP55)
EH J17 FL	EXTERNAL - 120 X 120 X 58 MM \| 45 UNITS PER BOX	GP BOX & SEAL (IP66)
EH J17 DL	EXTERNAL - 120 X 120 X 58 MM \| 54 UNITS PER BOX	DOME BOX & SEAL (IP64)
